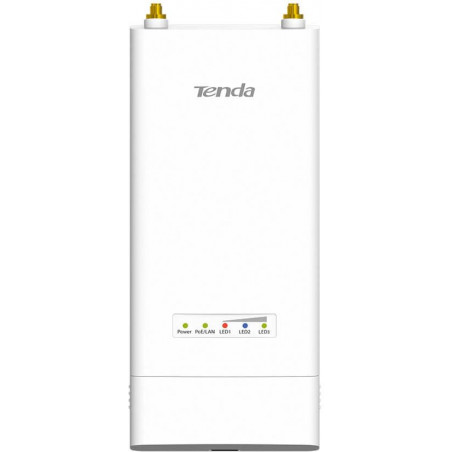

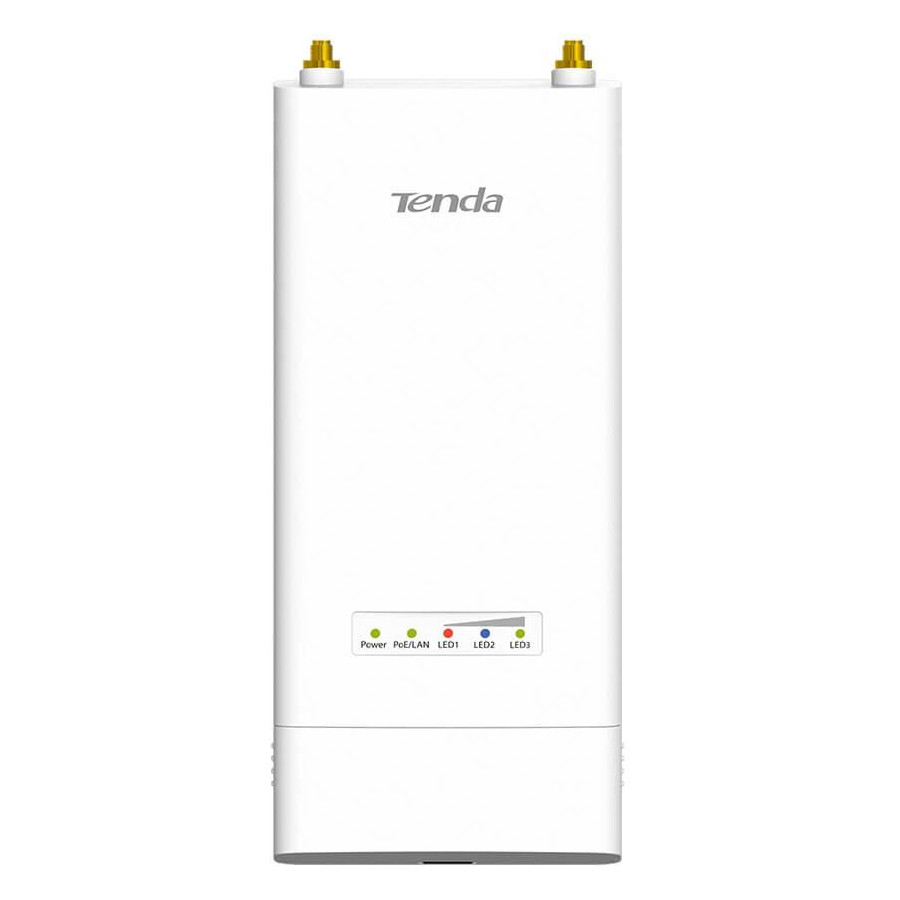

B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol--TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users.
What it does
B6 5GHz 11n 300Mbps Basestation is designed for PtP and PtMP solutions for rural wireless connectivity and CCTV surveillance.Features with two RP- SMA enable it to pair with dish antenna or sector antenna to establish PtP backhaul connection and P2MP link. It adopts Tenda TDMA (Time Division Multiple Access) proprietary protocol-TD-MAX to improve performance and capacity. The auto-bridging technology enable it easy to setup for both business and home users.
Dimension
194.7*83*42.1mm
Application Scenarios
PtP, PtMP for rural wireless connectivity and CCTV surveillance
Standard&Protocol
IEEE 802.11a/n
Private TDMA Protocol
TD-MAX
Maximum wireless speed
300Mbps
Interface
1*10/100Mbps Ethernet Port
LED indicator
PoE/LAN,LED1,LED2,LED3
Power Method
24V0.5A Passive PoE
Lightning Protection
6000V
Passive PoE power supply
Passive power over ethenet via PoE/LAN ( 4,5pins
-7,8pins)
Voltage range: 21-25V DC
Reception Sensitivity
MCS0: -96dbm
MCS7: -72dbm
Operating Mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
Client Limitation For SSID
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmit Power
Adjustable power by 1dBm
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge
Support
VLAN Tagging for SSID
Support
VPN Pass-through
PPTP,L2TP
Dynamic DNS
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time&Date Setting
Support
Backup/Restore Configuration
Support
Username Managerment
Support
Managed By Controller
PC Software -- CPE Assistant
Package Content
1*5GHz 11N 300Mbps Basestation
1*PoE Power Adapter
1*Quick Installation Guide
Temperature
Operating Temperature:-30℃ ~ 60℃
Storage Temperature:-40℃ ~ 70℃
Humidity
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~90% non-condensing
Default Settings
Default login IP:192.168.2.1
Default Login Username:admin
Default Login Password:admin
Certification
FCC/CE/RoHS
