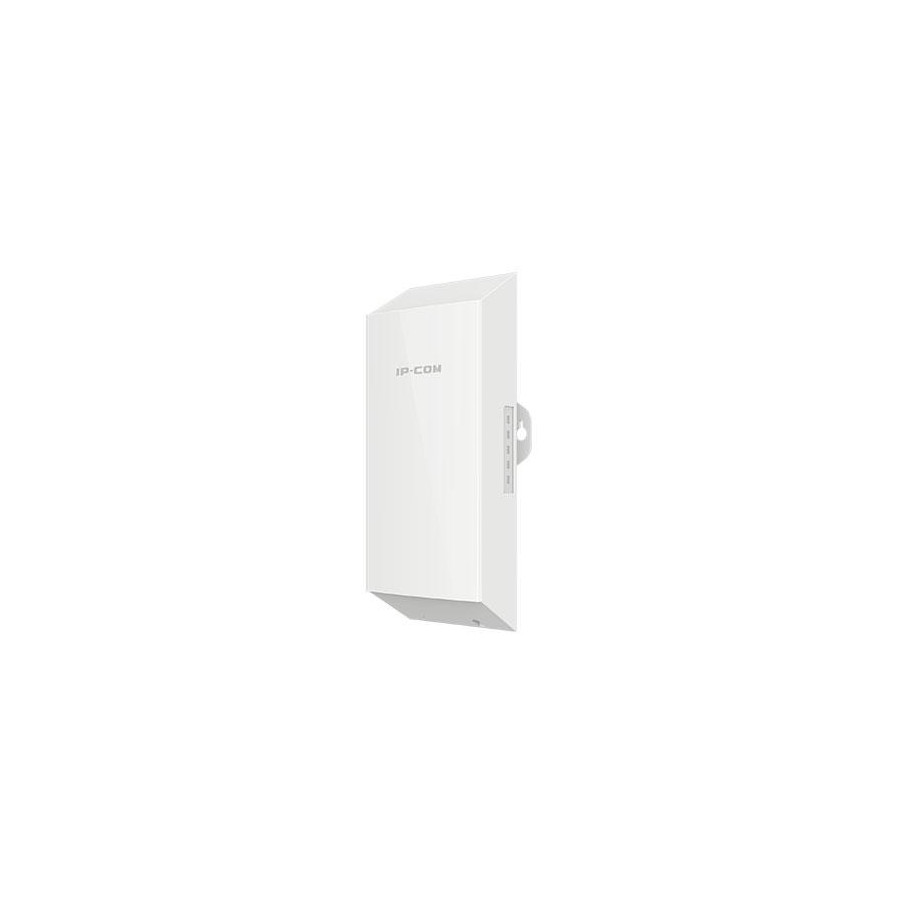

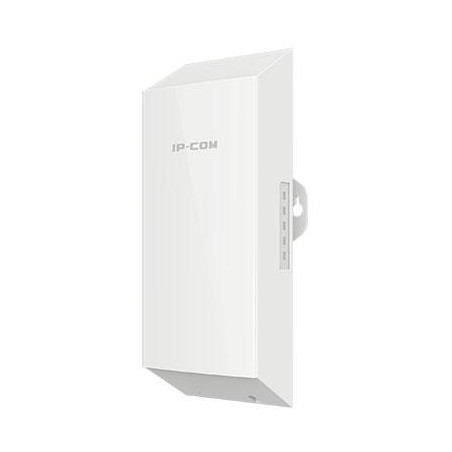

CPE6 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
| Product Information | |
|---|---|
| Model | CPE6 |
| Dimensions | 193.5*80*67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Hardware Features | |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n |
| Private TDMA Protocol | IMAX |
| Maximum Wireless Rate | 300Mbps |
| Interfaces | 1*10/100Mbps Ethernet Port |
| Antennas Gain | 12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° |
| Reset Button | 1 |
| DC Jack | 1 |
| Power Consumption | 6.3W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,WiFi LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE or DC Adapter |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC |
| Receiver sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Software Features | |
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 10/20/30/40MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software — CPE Controller |
| Others | |
| Package Contents | 1*2km Point to Point Outdoor CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
