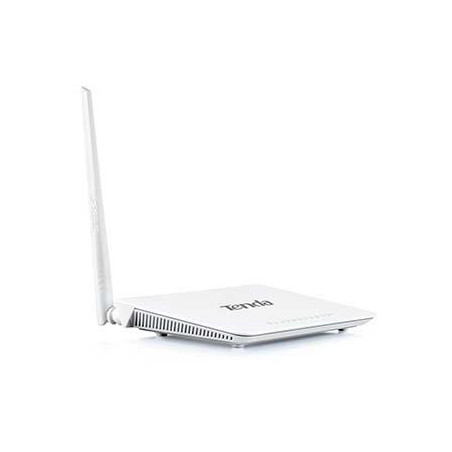

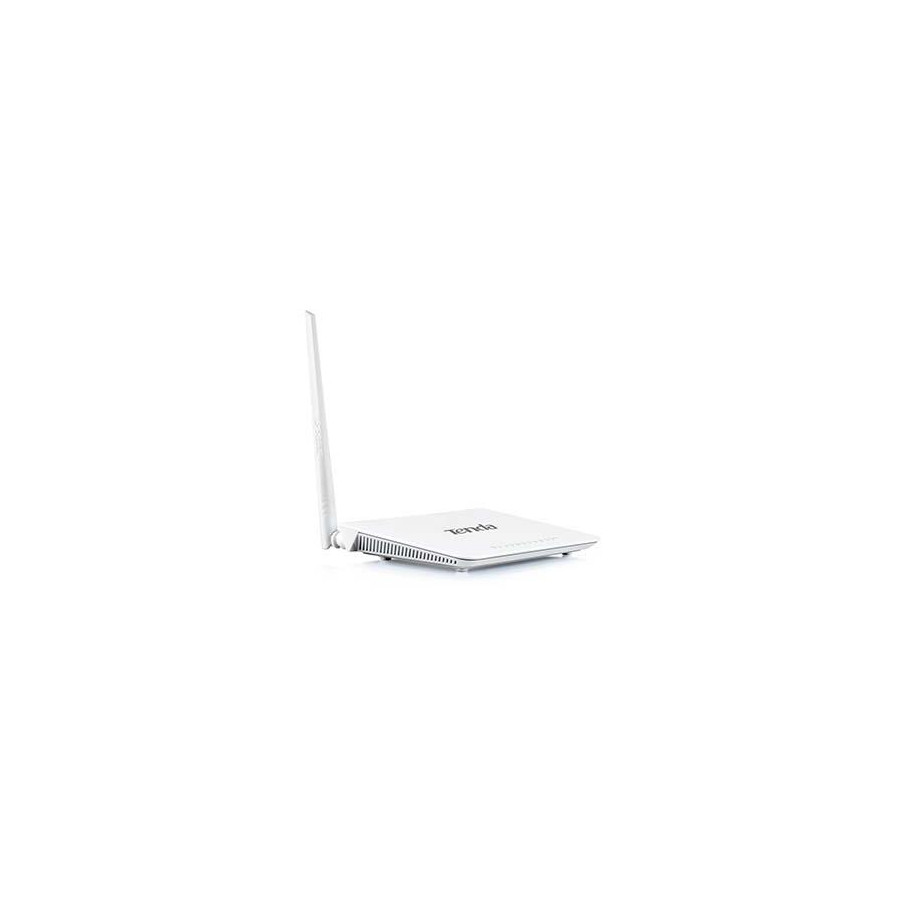

D151 Wireless N150 ADSL2+ Modem Router
D151 is an 802.11n-compliant device that combines the function of high speed ADSL2+ modem, wireless router and 4-port switch. It delivers up to 3x faster wireless speed and 4x farther range than 802.11g. D151 also supports the latest ADSL2/2+ standards to provide higher performance and longer reach from ISP's DSLAM. Connect it to the Internet service and provide up to 150Mbps wireless network for sharing high volume files, streaming music, videos, even online gaming among multiple computers.
Main Features
>> ADSL 2/2+ Modem, WiFi Router,and four-port switch in a single device;
>> Connects your computers, smartphones and pads at wireless transfer rates of up to 150Mbps;
>> Industrial-strength security like WPA/WPA2 protects your wireless communication;
>> 3 LAN Fast Ethernet ports + 1 LAN/WAN port
| Hardware Features | |
|---|---|
| Protocols & Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b IEEE 802.3, IEEE 802.3u ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5 |
| Interface | 1* RJ11 port 3*10/100Mbps auto-negotiation (Auto MDI/MDIX) LAN ports; 1*10/100Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX) |
| Antenna | 1* external omni-directional antenna |
| Button | 1* Power 1* Reset/WPS |
| Power | Input: 100-240V 50/60MHz Output: 9V DC-1A |
| Temperature | Operating Temperature: 0¡æ ~ 40¡æ; Storage Temperature: -40¡æ ~ 70¡æ. |
| Humidity | Operating Humility:10% ~ 90% RH Non-condensingStorage Humility:5% ~ 90% RH Non-condensing |
| Dimensions (L*W*H) mm | 171.61mm*111.16mm*34.47mm |
| LED | Power/SYS/Internet/DSL/WLAN/LAN/WPS |
| Transmission Media | Cat.5 Cat.5e Cat.6 Phone Cable |
| Wireless Features | |
| Wireless Speed | 150Mbps |
| Frequency | 2.4GHZ |
| Basic Features | Wireless Radio: On/Off SSID Broadcast: On/Off; WDS: On/Off Channel: Auto, 1-13 Network Mode: 11b only, 11g only, 11n only, 11bg mixed, 11bgn mixed Channel Bandwidth: Auto, 20MHz, 40MHz |
| Security | Wireless Access Control (Wireless MAC filter); Wireless Security: Enable/Disable; 64-/128-bit WEP; WPA-PSK/WPA2-PSK |
| Operating Mode | Wireless ADSL/ADSL2+ Modem Router, WDS |
| Software Features | |
| Internet Connection Type | Dynamic IP Static IP PPPoE PPPoA IPoA |
| DHCP Server | Yes |
| Virtual Server | Yes |
| Security | Port/URL/MAC Filter |
| DDNS | Yes |
| TR-069 | Yes |
| VPN Pass-through | PPPTP, L2TP, Ipsec |
| Bandwidth Control | Yes |
| Static Route | Yes |
| Logs | Yes |
| VLAN | 802.1Q VLAN |
| USB V2.0 | Yes |
| Others | TR-069, IPV6, IPTV |
| Others | |
| Package Contents | D151 Power Adapter Quick Install Guide Ethernet Cable ADSL Splitter 2 Telephone Lines |
| Temperature | Operating Temperature: 0¡æ ~ 40¡æ; Storage Temperature: -40¡æ ~ 70¡æ. |
| Factory Default Settings | Login IP Address: 192.168.1.1 Internet Connection Types: Bridge,PPPoE,PPPoA,IPoA,DHCP (Dynamic IP), Static IP SSID: Tenda_xxxxxx (where "xxxxxx" represents the last six characters of device MAC address) Channel: 6 IP Address Pool: 192.168.1.2 - 192.168.1.254 |
| Factory Default Settings | Login IP address: 192.168.1.1 Internet Connection Type Bridge/PPPoE/PPPoA/IPoA/Static IP/Dynamic IP SSID: Tenda_xxxxxx ("xxxxxx" represents the last six characters in device's MAC address) Channel: 6 DHCP IP Pool: 192.168.1.2 - 192.168.1.254 |
| 3 Install Steps | Step 1. Connect all cables following the QIG. Step 2.Insert the CD into your PC's drive. Step 3.Configure it using the "Setup Wizard" on the CD. |
| Certificates | 3C/ROHS/CE/FCC |
