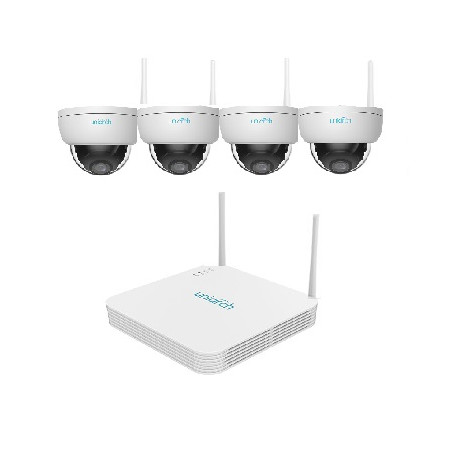

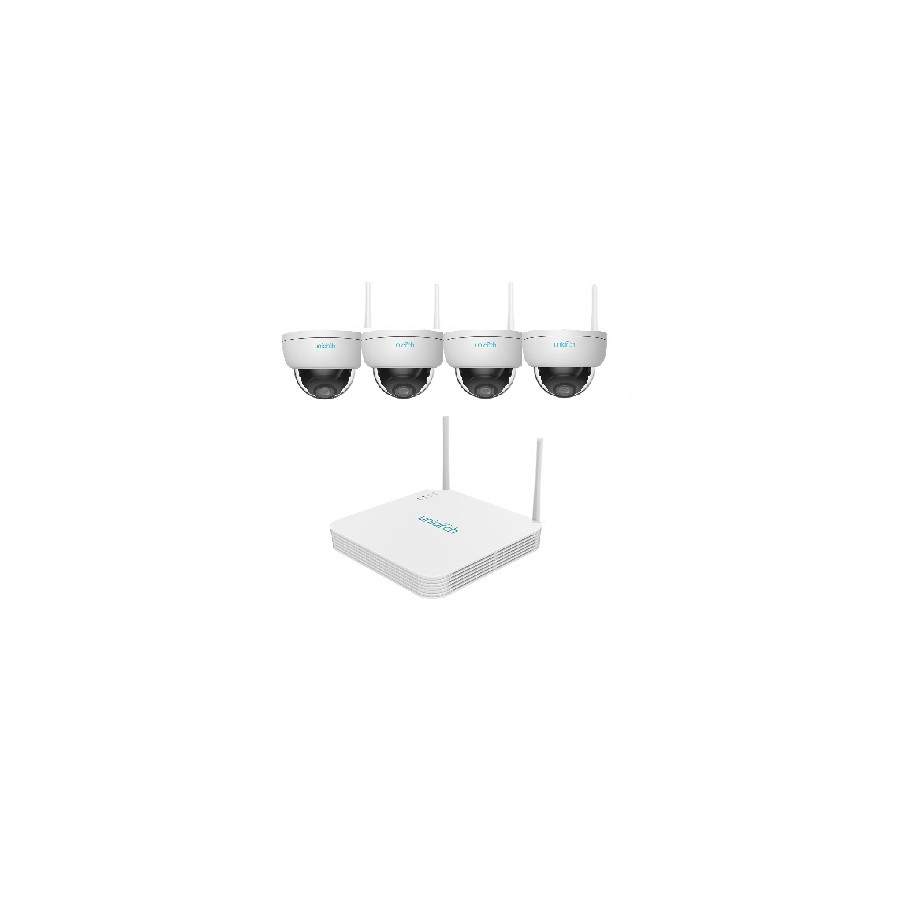

KIT UNIARCH Wifi, 4 Canali PoE Ultra 265, 4 Dome Wifi 2MP
-
Politiche per la sicurezza
-
Politiche per le spedizioni
-
Politiche per i resi merce
KIT WIFI Uniarch - 4 canali
Modello: KIT/NVR-104LS-W/4*IPC-T112-F40W
Nella confezione:
- 1 pz NVR 4 Canali UNIARCH, Recording 2MP, Uscita HDMI/VGA
- 4 pz Telecamere IP serie IPC-D112-F40W-I a 2MEGAPIXEL, Alimentazione 12Volt (NO POE)
Rete:
- Standard wireless: IEEE802.11b, 802.11g, 802.11n
- protocolli: TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
Immagine:
- Max. Risoluzione dell'immagine: 2 Megapixel
- Frequenza dei fotogrammi: 50 Hz: 20 fps (2560 1440), 25 fps (2304 1296, 1920 1080, 1280 720) 60 Hz: 20 fps (2560 1440), 30 fps (2304 1296, 1920 1080, 1280 720)
|
|
|
FUNZIONA CON TUTTE LE APP DI UNIVIEW
EZStation
EZLive
| Model | NVR-104LS-W | ||||
| Video/Audio Input | |||||
| IP Video Input | 4-ch | ||||
| Network | |||||
| Incoming Bandwidth | 40Mbps | ||||
| Outgoing Bandwidth | 40Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||||
| Recording Resolution | 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Synchronous Playback | 4-ch | ||||
| Corridor Mode Screen | 3/4 | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Live view/ Playback | 5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 5MP@30, 2 x 4MP@25, 2 x 3MP@30,4 x 1080P@25 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interface | ||||
| Capacity | Up to 10TB for each HDD | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel：2 x USB2.0 | ||||
| Wi-Fi | |||||
| Frequency | 2.4GHz | ||||
| Transmission Rate | 150Mbps | ||||
| Wireless Standards | IEEE 802.11b/g/n | ||||
| Wireless Range | 280m(open environment) | ||||
| General | |||||
| Power Supply | 12V DC Power Consumption: ≤ 9 W( without HDD ) | ||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||
| Dimensions(W×D×H) | 205mm × 205mm × 46mm (8.1" ×8.1"×1.8") | ||||
| Weight ( without HDD ) | ≤0.58Kg(1.28lb) | ||||
| Model | IPC-D112-F40W | ||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.0mm@F2.0 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 4mm | 64.3 | 25.7 | 12.9 | 6.4 | |
| Angle of view(H) | 82.0° | ||||
| Angle of View (V) | 41.4° | ||||
| Angle of View (O) | 100.9° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; | ||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | IE: IE8; IE9; IE11 Chrome Firefox Edge Safari | ||||
| Wi-Fi | |||||
| Wireless Standards | IEEE802.11b/g/n | ||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||
| Channel Bandwidth | 20 MHz Support | ||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | ||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||||
| Transmit Power | 802.11b: 17±1.5dBm@11Mbps 802.11g: 14±1.5dBm@54Mbps 802.11n: 12.5±1.5dBm@150Mbps | ||||
| Receive Sensitivity | 802.11b: -90dBm@11Mbps (Typical) 802.11g: -75dBm@54Mbps (Typical) 802.11n: -74dBm@150Mbps (Typical) | ||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | ||||
| Interface | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE（EN 60950-1:2006） UL：UL60950-1 FCC：FCC Part 15 | ||||
| General | |||||
| Power | DC 12V±25% | ||||
| Power consumption: Max 4 W | |||||
| Dimensions (L × W × H) | 168.4 × 66.5 × 62.5mm (6.6” × 2.6” × 2.5”) | ||||
| Weight | 0.25 kg (0.55 lb) | ||||
| Material | Front cover：metal Body：plastic Bracket：plastic Bottom plate：plastic | ||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Reset Button | Supported | ||||
