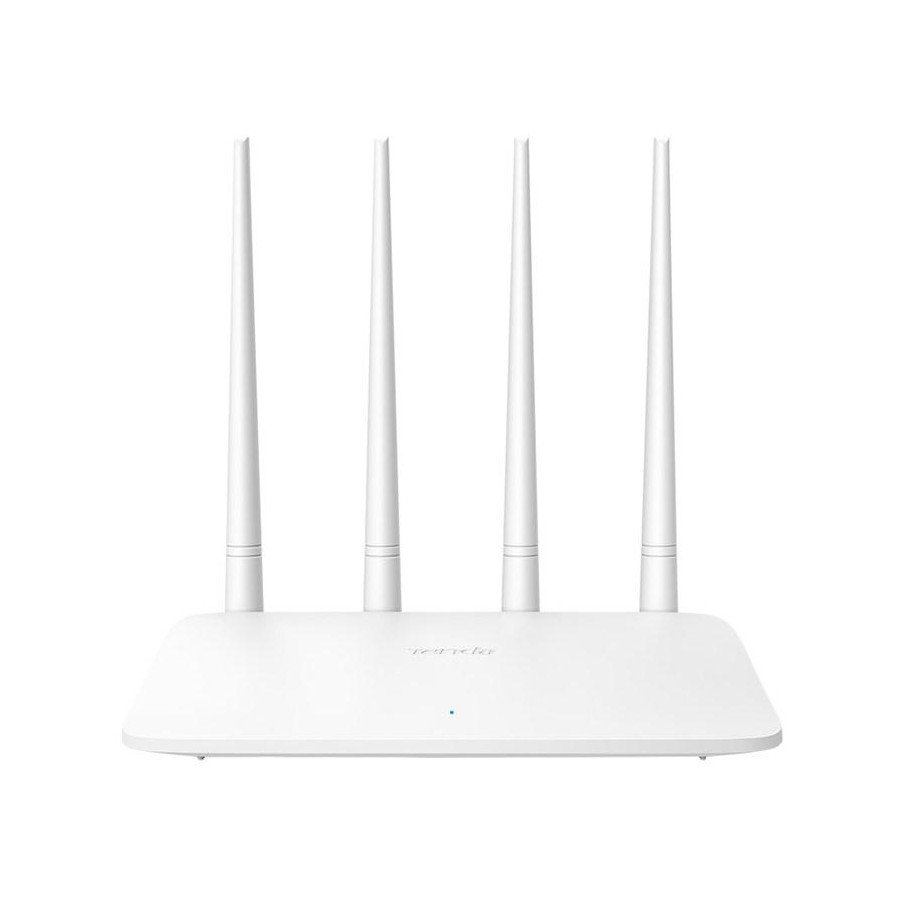

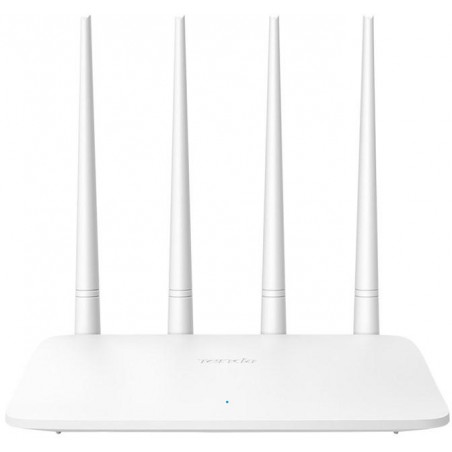

F6 is specially designed for regular urban flat. With 4 external 5dbi antennas, the wireless coverage can perfectly cover any regular flat or student accommodation; F6 can also be used as wifi signal extender, just one step to bridging two routers brings your twice wifi coverage. The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable. In addition, it comes with Wifi timer switch function, you can enjoy your wifi but without worrying about spending too much time on it.
Four antennas, designed for small and medium-sized apartment, whole-room coverage
Four External 5dBi antennas, based on MIMO technology, multiple transmissions, ensure fast and stable wireless data transmission and effectively enhance Wi-Fi signals.
Qualcomm chip,more stable
The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable.
The latest reapter mode,better than traditional WDS mode
New WISP repeater mode,it is more easy and compatible and amplifies WiFi signals in one step,you can enjoy whole-room WiFi coverage and lag free WiFi performance .
WiFi Time switch, one-touch setting, no more waste of time
With Wi-Fi timer switch function, you can enjoy your wifi but without worrying about spending too much time on it.
Standard&Protocol
IEEE802.3, IEEE802.3u
Interface
1*10/100Mbps port
3*10/100Mbps ports
Antenna
4*5dBi external antennas
Button
1*WiFi/Reset button
Power
input: AC 100-240V—50/60Hz
output: DC 9V 0.6A
LED indicator
LED light*1
Dimension
204*147.5*211mm
Wireless Standards
IEEE 802.11b/g/n
Data Rate
300Mbps
Frequency
2.4GHz
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Internet Connection Type
PPPoE, Dynamic IP, Static IP
Operating Mode
Wireless Router Mode
AP Mode
WISP Mode
Universal Repeater Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
DDNS
Support Oray.com,88ip
Other
Bandwidth Control
MAC Close Static Routing
System Log
Backup& Restore configuration
firmware upgrade online
Firmware upgradeable via browser
Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage humidity: 5% ~ 90% RH non-condensing
Default Settings
Default Access: tendawifi.com or http://192.168.0.1
Certification
CCC,CE
Package Content
Wireless N300 Router*1
Power Adapter*1
install Guide*1
Ethernet cable
