Specifications:

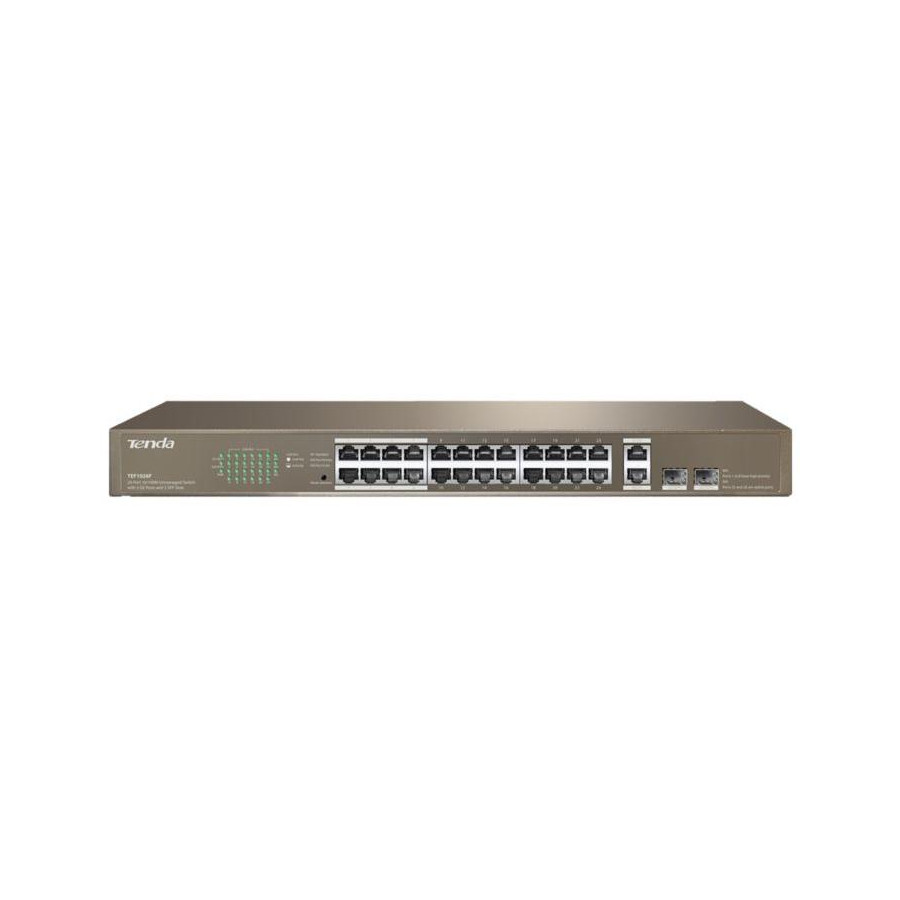

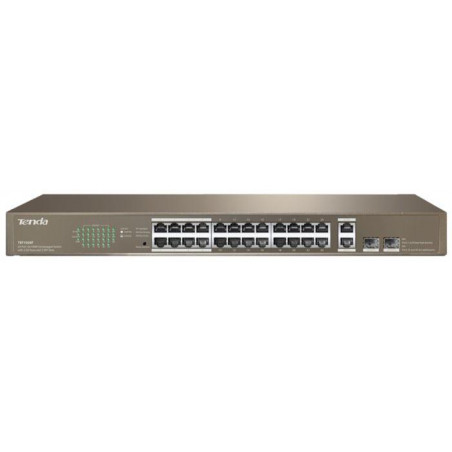

| Product Code | TEF1026F |
| Access Control | CDMA/CD |
| Compatible OS | Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux, MAC OS |
| Fan Quantity | Fanless |
| Forwarding Speed | 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps |
| Intertface | 24x 10/100M and 2x 10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX), 2x 1000M SFP solts (Combo) |
| MAC Address Learning | Automatic update |
| MAC Address Table | 16K |
| LEDs | 1x Power, 26x Link/Act, 3x mode status lights |
| Lightning Level | 6kV in Common Mode Protection for 2x GE ports, 6kV in Common Mode, 4kV in Differential Mode Protection for power supply |
| Loop Guard | Support Hardware Auto loop protection and prevention in M1 |
| Mode | M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other. |
| M2 | Port-based priority mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. |
| M3 | Port-based VLAN mode, ports 1 to 24 can communicate with uplink ports (ports 25 and 26) but cannot communicate with each other. |
| Operating Humidity | 10%~90% non-condensing |
| Operating Temperature | 0°C~40°C |
| Packet buffer | 4Mb |
| Power Consumption | Maximum : 12W (220V) |
| Power Supply | Input: AC:100-240V; 50/60Hz |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Storage Humidity | 5%~90% non-condensing |
| Storage Temperature | -40°C~70°C |
| Switching Capacity | 8.8Gbps |
| Transfer Method | Store and Forward |
| Transmission Media | 10Base-T: Cat. 3 UTP or better, 100Base-TX: Cat.5 UTP or better, 1000Base-T: Cat.5e UTP or better, 1000BASE-X: MMF, SMF |
| Dimensions | 440mm x 178mm x 44mm |
