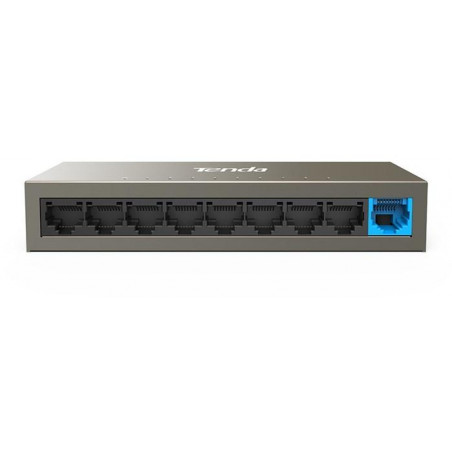

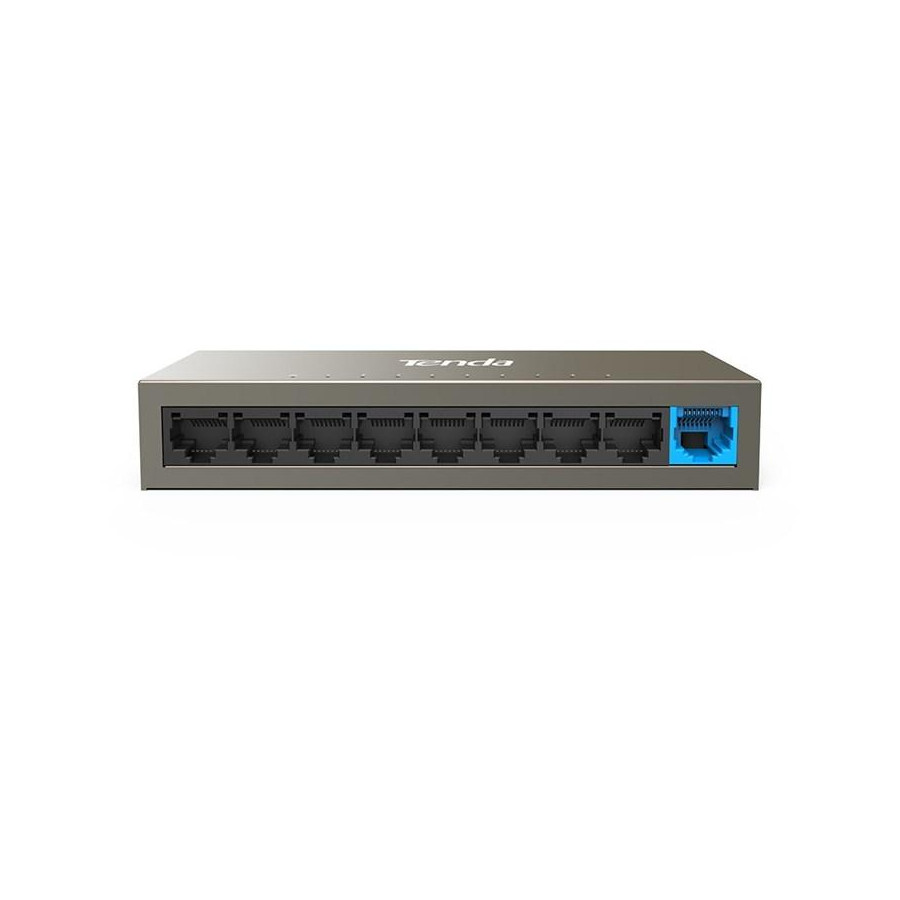

TEF1109D is a 9-port fast Ethernet switch developed by Tenda, offering 9 10/100 Mbps RJ45 ports. Equipped with large packet buffer, it also ensures smooth streaming even when 8 HD IP cameras are working simultaneously. You can enable port VLAN mode of the switch to protect your LAN network from broadcast storm and prevent loss of monitoring images. In addition, the switch offers 6 kV lightning protection for its uplink port. In a word, TEF1109D is a perfect choice for small and medium-sized IP surveillance projects and enterprises to have network.
Standard&Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Port
9 * 10/100 Mbps RJ45 port
Transmission Media
Recommended: CAT5/5e UTP or better
Forwarding Rate
10 Mbps: 14880 pps
100 Mbps: 148800 pps
Power
Input: 100 - 240 V AC, 50/60 Hz
Output: DC 9 - 12 V
Lightning Protection
6 kV for uplink port
Dimension
140 mm * 66.5 mm * 25.3 mm(L * W * H)
LED indicator
1 * Power
9 * Link/Act
Switching Capacity
1.8 Gbps
MAC Address Table
2 K
Power Consumption
Max: 5 W
Protocol
CDMA/CD
Store & Forward
Supported
MAC Address Learning
Auto learning & auto aging
VLAN
Supported. Port 9 is an uplink port and ports 1 to 8 are isolated from each other.
Temperature
Operating temperature: (0 - 40)°C
Storage temperature: (-40 - 70)°C
Humidity
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) % RH, non-condensing
Certification
CCC, CE, FCC, RoHS
Related Products
TEF1109DT
8FE+1GE Desktop Switch
Operation System
Windows 8 32/64 bit
Windows 7 32/64 bit
Windows XP 32/64 bit
Linux
MAC OS
Package Content
1 * 9-Port 10/100M Ethernet Desktop Switch
1 * Power adapter
1 * Quick installation guide
