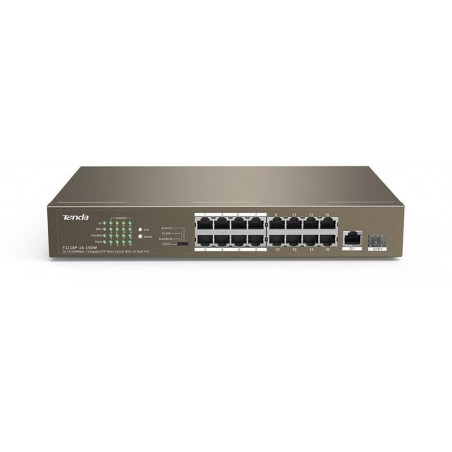

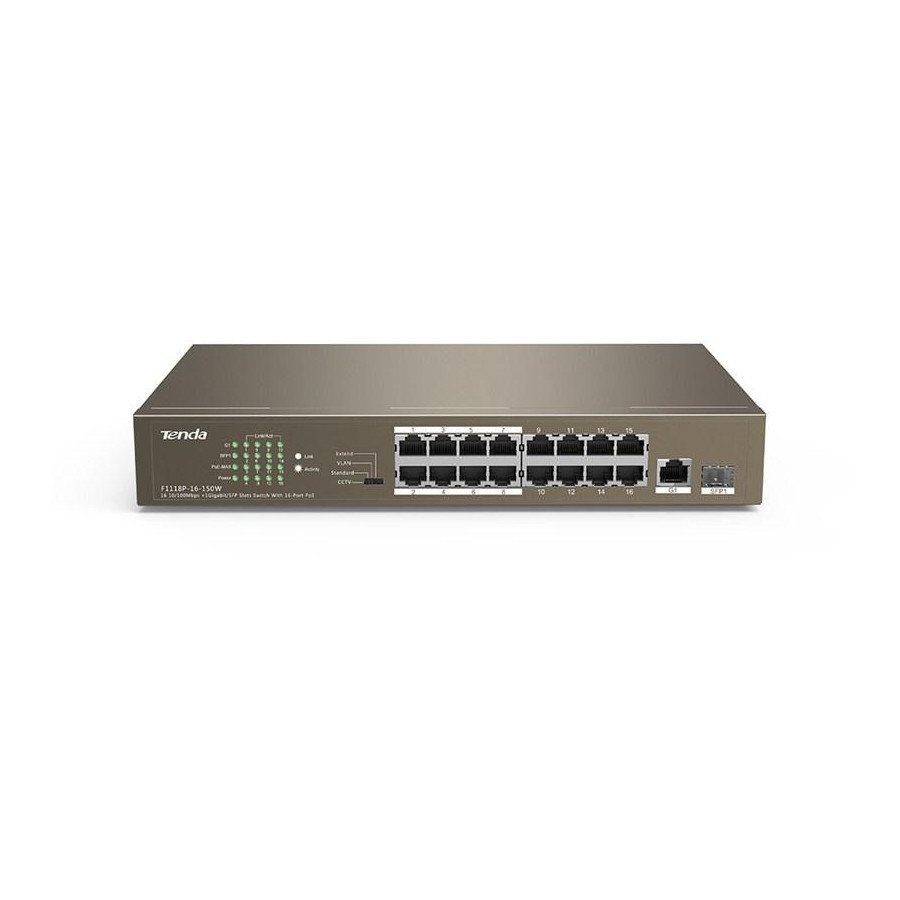

Tenda TEF1118P Switch 16-Ports PoE + 1 GE+1 SFP Unmanaged

169,99 €

Sizes: 29,4x17,8x4,4
Box: 5
Color: 0
Certificate: CE RoHS FCC
Comp. brand: Tenda

Quantity :

This is an approximate conversion table to help you find your size.

If you already have purchased an item from our brand, we recommend that you select the same size as indicated on the table

Italian Size	French Size	Spanish Size	German Size	UK Size	USA Size	Japanese Size
34	30	30	30	4	00	34
36	32	32	32	6	0	36
38	34	34	34	8	2	38
40	36	36	36	10	4	40
42	38	38	38	12	6	42
44	40	40	40	14	8	44
46	42	42	42	16	10	46
48	44	44	44	18	12	48
50	46	46	46	20	14	50
52	48	48	48	22	16	52

Write review

Hurry! Only 51 Left in Stock!

Tenda TEF1118P Switch 16-Ports PoE + 1 GE+1 SFP Unmanaged

169,99 €

Quantity :

This is an approximate conversion table to help you find your size.

If you already have purchased an item from our brand, we recommend that you select the same size as indicated on the table

Italian Size	French Size	Spanish Size	German Size	UK Size	USA Size	Japanese Size
34	30	30	30	4	00	34
36	32	32	32	6	0	36
38	34	34	34	8	2	38
40	36	36	36	10	4	40
42	38	38	38	12	6	42
44	40	40	40	14	8	44
46	42	42	42	16	10	46
48	44	44	44	18	12	48
50	46	46	46	20	14	50
52	48	48	48	22	16	52

Write review

Hurry! Only 51 Left in Stock!

Politiche per la sicurezza
Politiche per le spedizioni
Politiche per i resi merce

Descrizione
Reviews

TEF1118P-16-150W not only offers 16 10/100 Mbps Base-TX RJ45 ports, but also 1 10/100/1000 Mbps Base-T RJ45 ports and 1 1000 Mbps Base-X SFP port. Ports 1-16 comply with the IEEE 802.3af standard and 802.3at standard and each port can support a maximum PoE power output of 30 W. The switch offers a maximum PoE power output of 135 W and it can supply power when exchanging data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as CCTV, VLAN, and Extend to help reducing cabling costs of IP terminals.

Standard&Protocol

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af

MTBF

≥100,000hours

Indicator

16*Link/Act per device
1*G1 Link/Act per device
1*SFP Link/Act per device
1*PoE-MAX per device
1*Power per device

Interface

16 10/100Base-TX ports(Data/Power)
1 10/100/1000Base-T port(Data)
1 1000Base-X SFP port

Lightning Protection

6KV

Store & Forward

Yes

exchange capacity

7.2 Gbit/s

Packet Forwarding Rate

5.36Mpps

MAC Address Table

PoE supply management

Port 1 to Port 16 support IEEE802.3at/af POE standard

PN pass-through

1 2 4 5 +，3 6 7 8 -

Input Power

AC：100-240V～ 50/60Hz

Dimension

294*178*44mm( W x D x H )

Power Consumption

in full configuration：<150W
PoE Max Power Supply：135W

Ports feature

CCTV： 1-8 ports support QoS，If multiple IP cameras are connected to the switch, you are recommended to enable this mode and connect the G1 or SFP1 port of this switch to the upstream device，like the monitoring computer. This ensures smoother monitoring video playback.
Standard： The switch’s functions are similar with a common unmanaged switch’s and all the ports of the switch can communicate with each other.
VLAN： In this mode, 1-16 ports of the switch cannot communicate with each other, but can communicate with the G1 and SFP1 ports. It can be used to isolate broadcast storms and DHCP broadcasts.
Extend： In this mode, the data rate of 1-8 port is limited to 10 Mbps, whereas the maximum transmission distance of the port is increased to 250 meters. All the ports of the switch can communicate with each other.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
