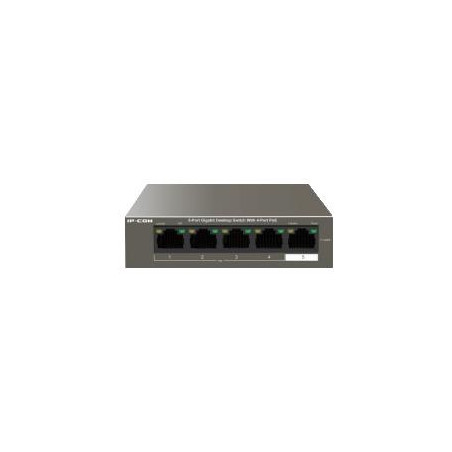

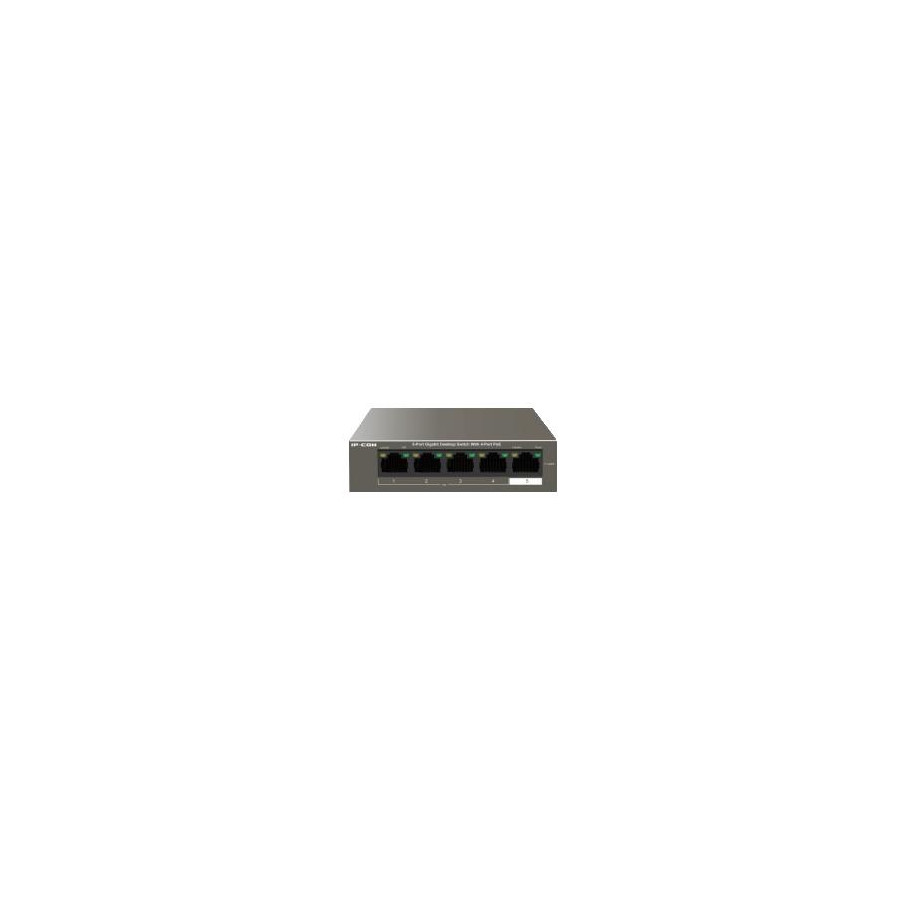

The IP-S1105-4-PWR-H from IP COM is a PoE switch that offers 5 x 10/100Mbps RJ45 ports. Ports 1~4 comply with the IEEE 802.3af standard (maximum PoE power output 15.4W) and 802.3at standard (maximum PoE power output of 58W.
Technical Specifications |
|
|---|---|
| Model No. | S1105-4-PWR-H |
| Description | 5 port 10/100 switch with 4 ports PoE |
| Protocols and Standards | IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at |
| LEDs | Link/Act, PoE Status, Power, 1000M |
| Fixed Ports | 4x10/100Base-TX RJ45 Ports(Data/Power)/ 1x10/100/1000Base-T RJ45 Port(Data) |
| PoE Supply | Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W) PoE power type is end-span(1245+, 3678- line pair) in full configuration：<63W PoE Max Power Supply：58W |
Physical & Environment |
|
| Dimension(L*W*H) | 100mm*100mm*26mm (W × D × H) |
