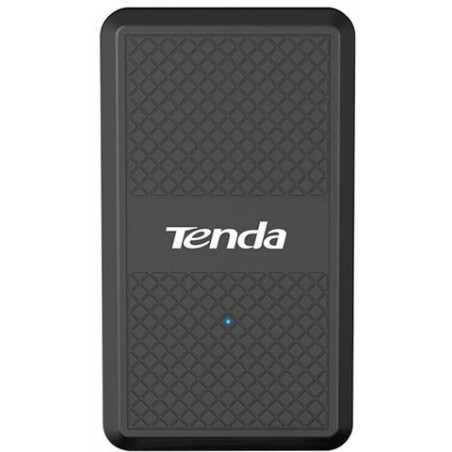

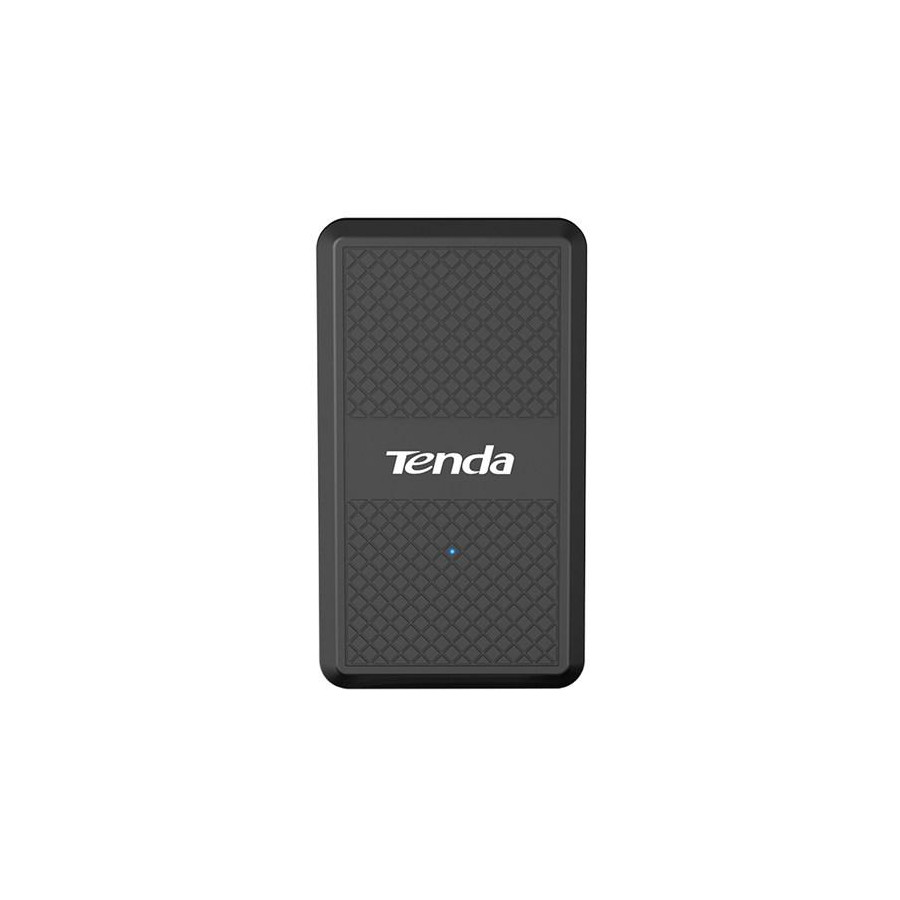

PoE Adapter PoE15F-48V-I can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
What it does
PoE Adapter PoE15F-48V-I can realize the synchronous transmission of network data and power through an Ethernet cable (Cat.5 or better). The output power of each port is as high as 15W, which can be exported as PoE equipment (via RJ45 port). You can connect to ieee802.3af's PD, such as wireless AP, IP camera, IP phone, etc. In a sense, reducing installation costs and improving network performance is a good choice.
Main Features
- Delivers power and data through one Ethernet cable for easy network extension
- Compatible with IEEE 802.3af compliant powered devices
- Supply Over-voltage, over-current and overload protection mechanism
- Transmission up to 100 meters with Cat.5 or better Ethernet cables
- Support AC input 100-240V, DC output 48V
- 4kV lightning protection
Power Over Ethernet
One PoE port to power connected devices for flexible network deployment. Save the purchase of new PoE switches and power cable, Saving money for user.
Extend Power Supply
Transmission up to 100 meters with Cat.5 or better Ethernet cables
Plug and Play
Hassle-free setup, no configuration required, Engineering wiring is more convenient.
Standard&Protocol
IEEE802.3、IEEE802.3u
LED indicator
1*power indicator
Interface
1*10/100Mbps auto-negotiation RJ 45 ports (Data)+1*10/100Mbps aoto-negotiation RJ 45 ports（Data&Power）（Auto MDI/MDIX）
Power
Input voltage:48V nominal power:15W AC:100～240V 50/60Hz
Dimension
82.66mm*46.83mm*40.26mm（L×W×H）
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Features
Store-and-Forward, 4kV lightning protection
Notice
PoE port's output voltage of PoE15F-48V-I is 48 V. Do not use PoE15F-48V-I to supply power to the device that is not compliant with IEEE 802.3af standard or whose input voltage/power is not 48 V/15.4 W. Otherwise, damages may occur on your PD.
